Property |
Value |
Test Methods |
|
Paver Type |
|
|
-

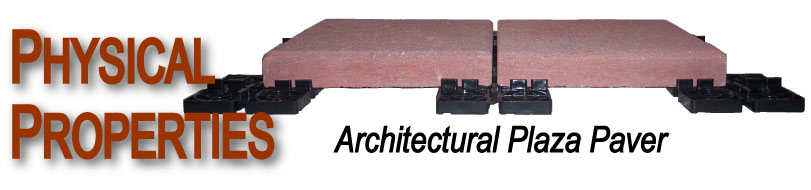

Architectural Paving Stone, Hydraulically Pressed with 400 Tons of Pressure
(Minimum).
- Designed specifically for use on rooftop
applications.
- Suitable for high yield traffic, Plazas, Terraces
and Walkways.
- For use
in conjunction with approved pedestals, drainage mats and protection
sheets.
|
SPRI
Specifications |
|
|
Composition |
|
|
| |
Aggregate |
ASTM C-33 |
| |
Cement |
ASTM
C-150 |
| |
Pigment |
ASTM C-979 |
|
|

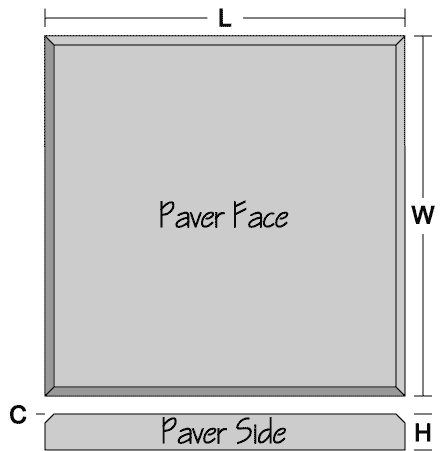

Dimensions
(Nominal) |
|
|
|
Standard Block |
|
|
|
|
|
Length
(L) |
Width
(W) |
Height
(H) |
Chamfer
(C) |
Unit
Weight (lbs) |
Weight
Per S.F. (lbs) |
Bearing
Surface (sq. in.) |
|
30” |
30” |
2-1/4” |
3/16" |
170 |
27 |
900 |
|
30” |
30” |
2” |
3/16" |
150 |
24 |
900 |
| |
|
|
|
|
|
|
|
24” |
24” |
2” |
3/16" |
96 |
24 |
576 |
|
24”
|
24” |
1-3/4” |
3/16" |
84 |
21 |
576 |
|
24” |
24” |
1-1/2” |
3/16" |
72 |
18 |
576 |
| |
|
|
|
|
|
|
|
18” |
18” |
2” |
3/16" |
54 |
24 |
324 |
|
18” |
18” |
1-3/4” |
3/16" |
47 |
21 |
324 |
|
18” |
18” |
1-1/2” |
3/16" |
40.5 |
18 |
324 |
| |
|
|
|
|
|
|
|
12” |
12” |
2” |
3/16" |
24 |
24 |
144 |
|
12” |
12” |
1-3/4” |
3/16" |
21 |
21 |
144 |
|
12” |
12” |
1-1/2” |
3/16" |
18 |
18 |
144 |
|
|
|
Concrete Properties
(Nominal) |
|
|
|
Unit Density |
150 pcf |
SPRI/ASTM
C-140 |
| Compressive Strength |
8,500 psi |
SPRI/ASTM
C-140 |
|
Flexural
Strength |
1,100
psi |
SPRI/ASTM C-140 |
|
Water Absorption |
Less than 5% |
SPRI/ASTM C-140 |
|
Freeze/Thaw Resistance |
50 Cycles
|
SPRI/ASTM
C-67
|
|
|
Standard Colors and Finishes |
|
|
|
|
|
|
|
|
