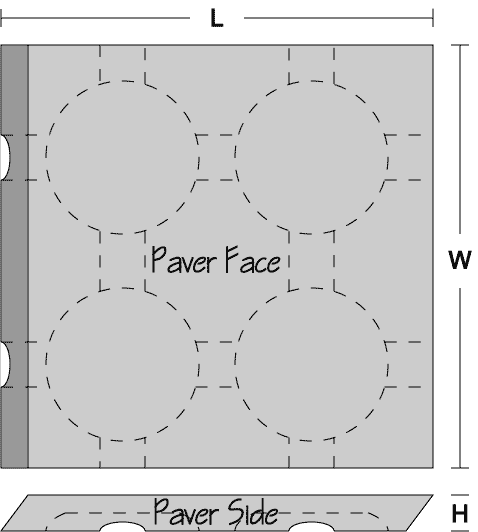

Series 1800 Ballast Paver - Standard Weight
Product Description Benefits

Series 1800 Paver

Dimension:  18" x 18" x 1-1/2" (Nominal)

Compressive Strength:  7,000 psi (min)

Flexural Strength:  900 psi (min)

Weight per s.f.:  13.5 psf (+/- 3/4 lb.)

Weight per Unit:  30.5 pounds

Water Absorption:  less than 5%

Freeze Thaw Resistance:  50 Cycles

Manufactured with Hydraulically Pressed Concrete for superior strength, low water absorption and freeze/thaw resistance.

Engineered to withstand uplift pressures associated with rooftop wind speeds in excess of 160 mph.

Bi-directional subsurface drainage system.

Designed to handle medium traffic loads.





Series 1800 Ballast Paver - Medium Weight

Product Description Benefits
Series 1800 Medium Weight Dimension:  18" x 18" x 1-3/4" (Nominal)

Compressive Strength:  7,000 psi (min)

Flexural Strength:  900 psi (min)

Weight per s.f.:  16.5 psf (+/- 3/4 lb.)

Weight per Unit:  37.0 pounds

Water Absorption:  less than 5%

Freeze Thaw Resistance:  50 Cycles

Manufactured with Hydraulically Pressed Concrete for superior strength, low water absorption and freeze/thaw resistance.

Engineered to withstand uplift pressures associated with rooftop wind speeds in excess of 160 mph.

Bi-directional subsurface drainage system.

Designed to handle medium to heavy traffic loads.





Series 1800 Ballast Paver - Heavy Weight

Product Description Benefits
Series 1800 Heavy Weight Dimension:  18" x 18" x 2" (Nominal)

Compressive Strength:  8,000 psi (min)

Flexural Strength:  1,000 psi (min)

Weight per s.f.:  22.0 psf (+/- 3/4 lb.)

Weight per Unit:  50 pounds

Water Absorption:  less than 5%

Freeze Thaw Resistance:  50 Cycles

Manufactured with Hydraulically Pressed Concrete for superior strength, low water absorption and freeze/thaw resistance.

Engineered to withstand uplift pressures associated with rooftop wind speeds in excess of 160 mph.

Bi-directional subsurface drainage system.

Designed to handle medium to heavy traffic loads.

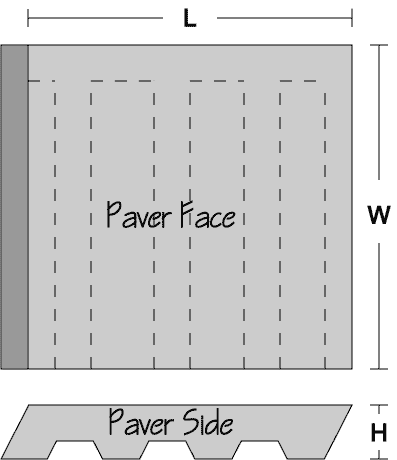

Series 1200 Ballast Paver - Standard Weight

Product Description Benefits
Series 1200 Dimension:  12" x 12" x 2" (Nominal)

Compressive Strength:  2,500 psi (min)

Flexural Strength:  350 psi (min)

Weight per s.f.:  12.0 psf (+/- 3/4 lb.)

Weight per Unit:  12.0 pounds

Water Absorption:  less than 18%

Freeze Thaw Resistance:  50 Cycles

Manufactured with Hydraulically Pressed Concrete for superior strength, low water absorption and freeze/thaw resistance.

Engineered to withstand uplift pressures associated with rooftop wind speeds in excess of 160 mph.

Bi-directional subsurface drainage system.

Designed to handle medium traffic loads.





Series 1200 Ballast Paver - Heavy Weight

Product Description Benefits
Series 1200 Heavy Weight Dimension:  12" x 12" x 2" (Nominal)

Compressive Strength:  5,000 psi (min)

Flexural Strength:  700 psi (min)

Weight per s.f.:  18.0 psf (+/- 3/4 lb.)

Weight per Unit:  18.0 pounds

Water Absorption:  less than 9%

Freeze Thaw Resistance:  50 Cycles

Manufactured with Hydraulically Pressed Concrete for superior strength, low water absorption and freeze/thaw resistance.

Engineered to withstand uplift pressures associated with rooftop wind speeds in excess of 160 mph.

Bi-directional subsurface drainage system.

Designed to handle medium traffic loads.
