Accessories Title

Pedestals
Product Description Benefits

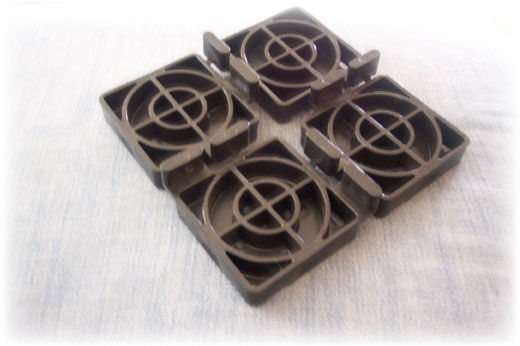

Roofblok Pedestal
  • Modular support bases, injection molded from high density polyethylene, designed to support ROOFBLOK Hydraulically Pressed Paving Stones at their corners.
  • Pedestals allow ROOFBLOK Plaza Pavers to be installed over all types of low-slope roof systems and can be used to create beautiful, level Terraces and Plaza Decks, regardless of the roof's drainage design.
  • Promotes proper water flow under ROOFBLOK Paver System.
  • Creates a level walking surface (When  installed accordingly).
  • Reduces sound transmission to the underlying structure.
  • Reduces heat transmission to the underlying structure.

Standard Pedestal

Dimension:  5-1/2" x 5-1/2" x 5/8"

Spacer Tab Width:  1/4"

Spacer Tab Height:  1/2"

Bearing Surface:  27.5 sq. in.





Leveling Plates
Product Description Benefits
Roofblok Leveling Plate
  • Modular support shim, injection molded from high density polyethylene, designed to support ROOFBLOK Hydraulically Pressed Paving Stones at their corners.
  • Shims allow ROOFBLOK Plaza Pavers to be adjusted in 1/8" increments to compensate for changes in slope, inaccuracies in roof decks and differences in paver thicknesses.
  • Allows for fine adjustment in 1/8" increments of ROOFBLOK Paving Stones when used in conjunction with ROOFBLOK Adjustable Pedestals.

Standard Pedestal

Dimension:  5-1/2" x 5-1/2" x 1/8"

Quadrant Width:  2-1/2"

Bearing Surface:  27.5 sq. in.
